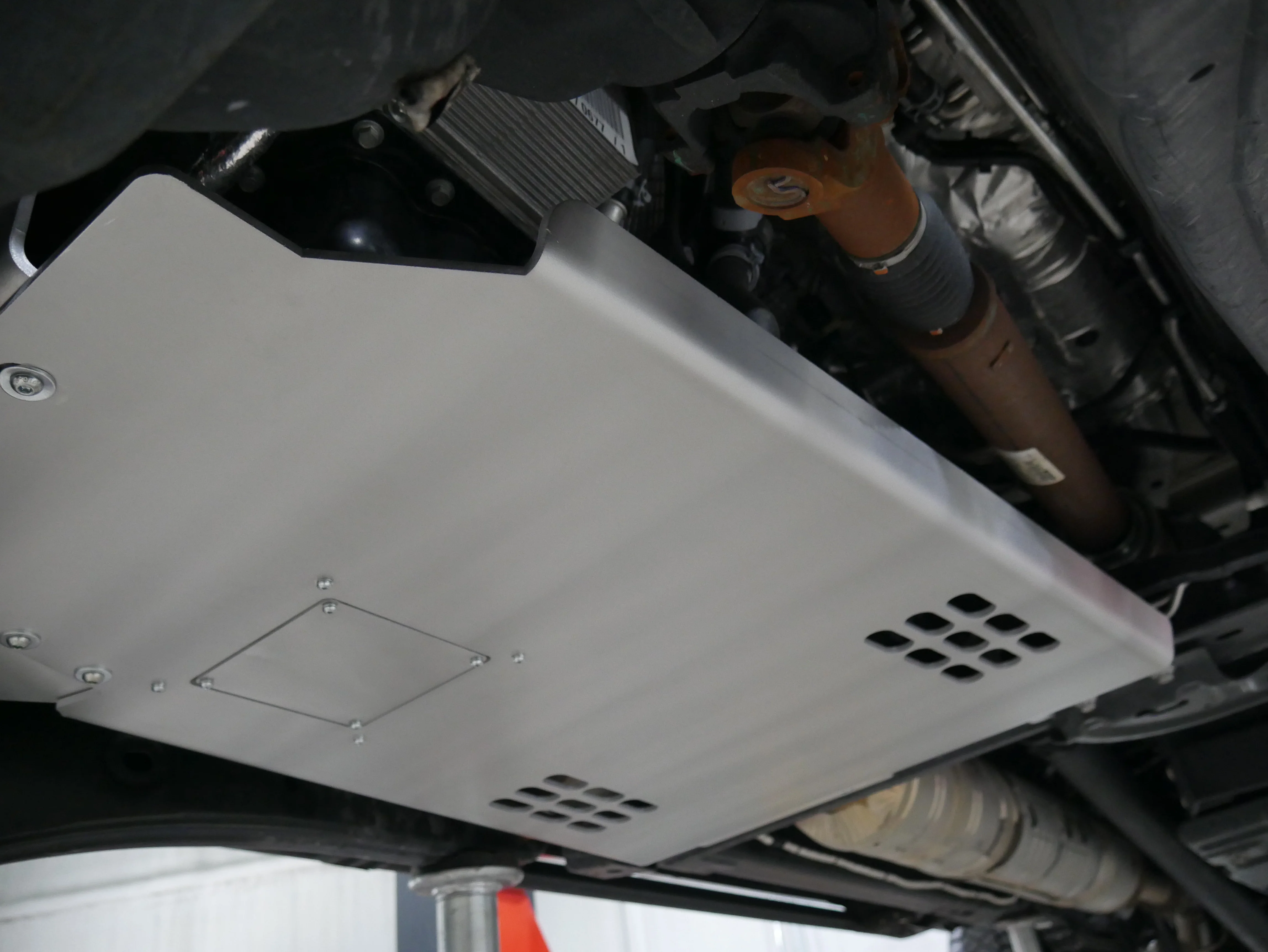

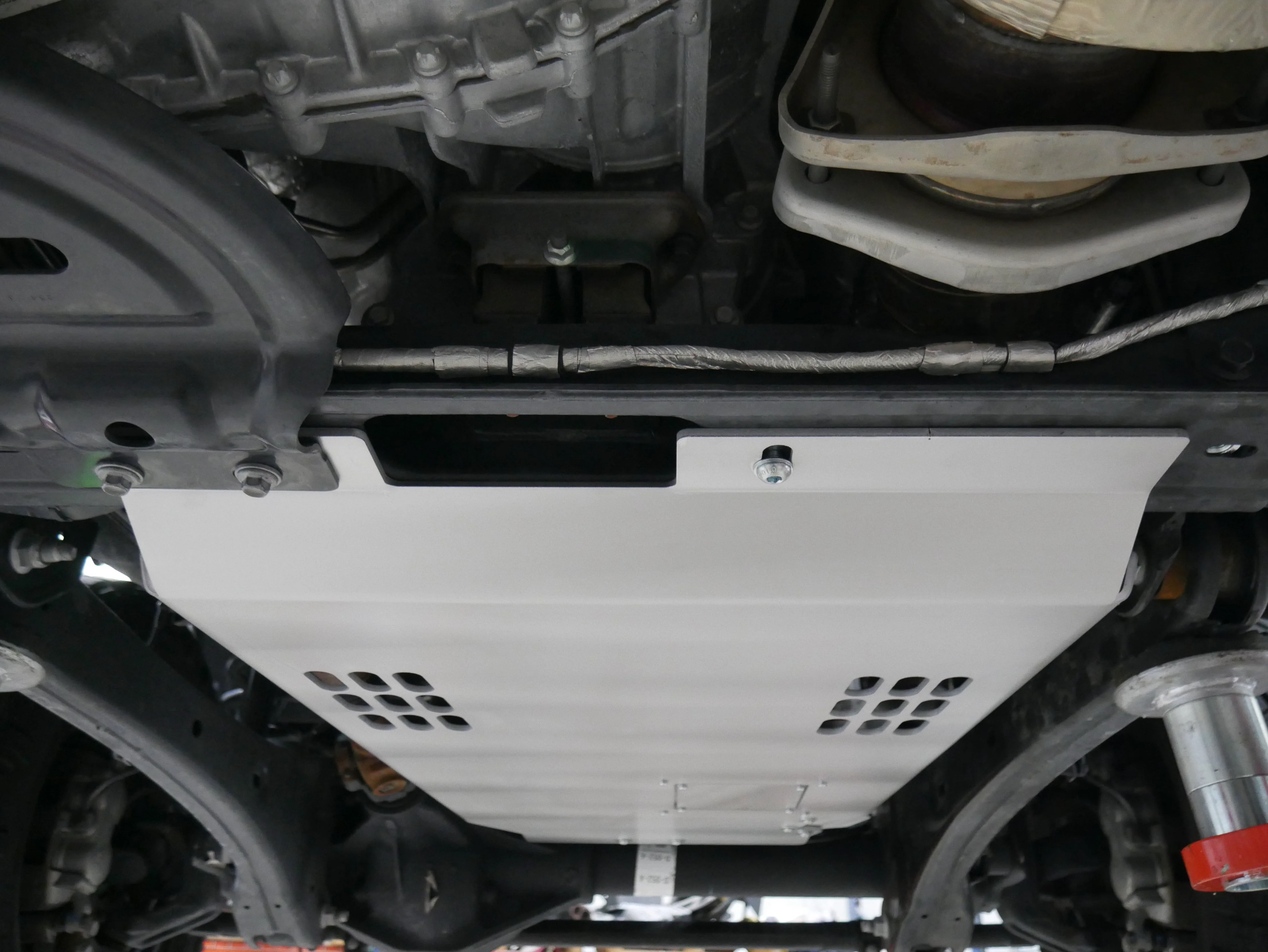

An engine and transmission skid plate for your 2020-2025 Ford F-250/F-350 with the 6.7L diesel engine. Crafted out of 1/4" 5052 aluminum making it an ideal cat theft deterrent and an off-road skid plate. It's an all-in-one design concept! This design boasts a full length shield that runs from crossmember to crossmember with added attachments for additional catalytic converter protection.

Fitment

• This skid plate is designed to fit the 2020-2024 F-250/F-350 with the 6.7L diesel engine with a 4x4 drive train
• Protects oil pan, transmission pan, and catalytic converter
• Please note: The 2020-2022 version will come with an additional "wing" that is mounted to the vertical flange on the driver side for additional coverage. The 2023-2024 model will not include this wing as there is not much of an open space between the exhaust and the radius arm.

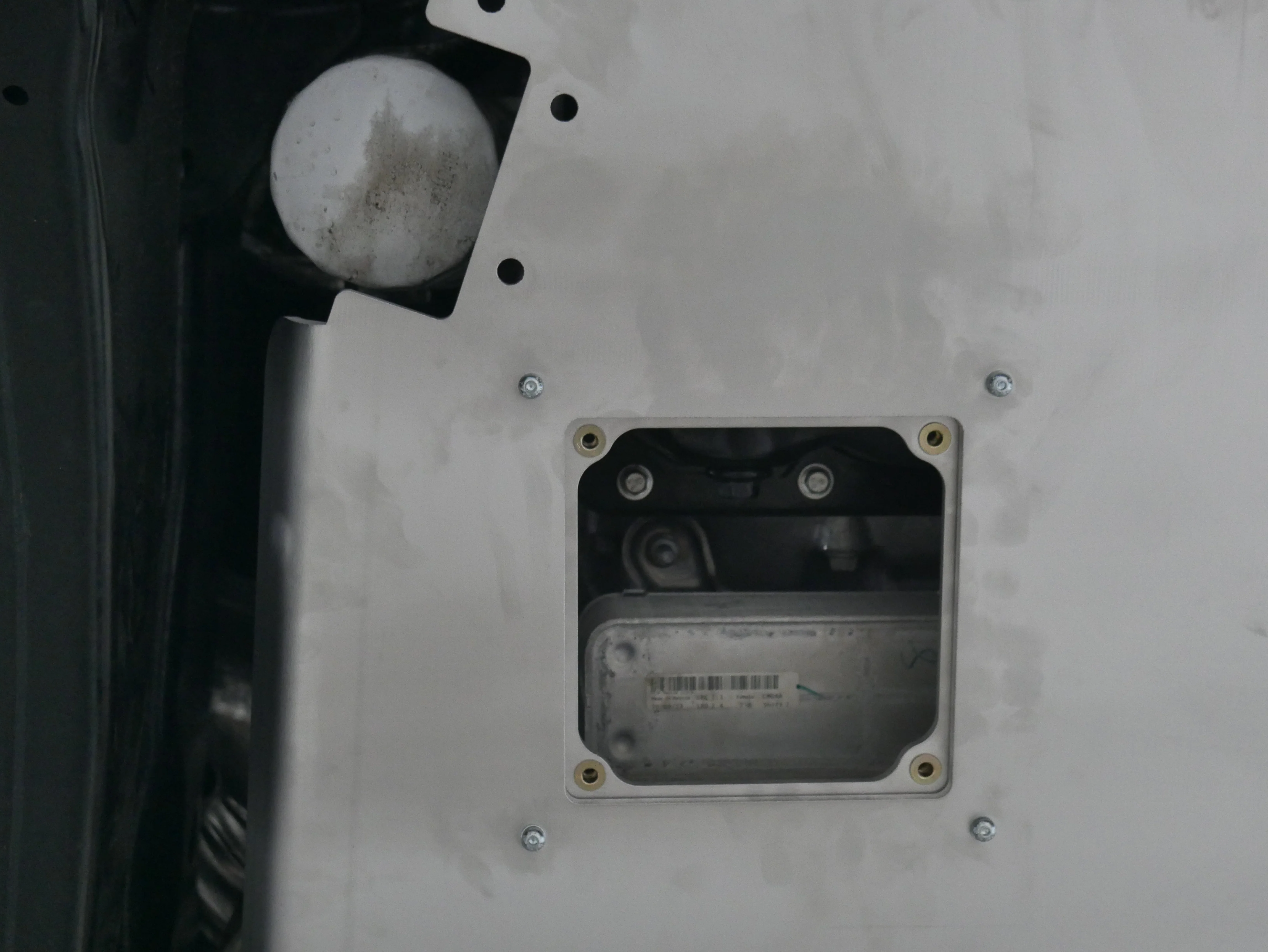

• Access to oil filter and drain plug! We do recommend a Fumoto valve, or similar, to ease oil changes with the shield installed
• Mounts into pre-existing holes. No drilling required.
• Compatible with OEM transfer case skid
• *If factory transfer case skid is not present, OEM transfer case mounting hardware will need to be purchased
• Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
• Fitment confirmed on stock 4x4 vehicles

Included with purchase

• Engine/Transmission skid plate
• Zinc coated button head Allen head hardware

Material

• CNC Laser Cut out of 1/4" 5052 Aluminum - Will not rust!
• Ships as bare metal
• All plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished.

Installation

• This skid plate does require some mechanical skill to install, as some of the bolts are in tight, and hard-to-reach areas
• Direct bolt-on, no drilling required
• 2020-2022 F-250 Engine & Transmission Skid Plate Install Guide
• 2023-2024 F-250 Engine & Transmission Skid Plate Install Guide

Dimensions

• Approximately 38 lbs

Shipping, returns, warranty

• Click here for our policies page
• Shipping in 2-3 days
